STEREO Cartridges

All TEDESKA cartridges are moving coil systems. Each of them is fully handmade in Berlin Germany. The bodies consist of shaped pieces of tone wood, camel or cattle bone, brass and nacre. Every readymade is finished using traditional French polish. Due to the special manufacturing processes and the use of various natural materials, each of the cartridges is outwardly unique. Please regard each product image as an example.   (More examples)


TEDESKA "CLASSIC" LINE

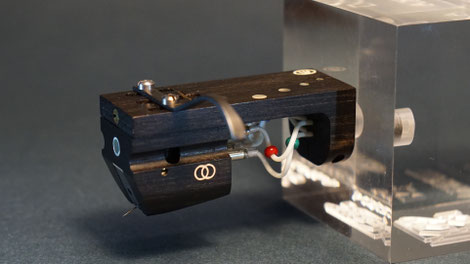

STEReo half inch system

Model: DST201u

Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Wiring:

6N Copper

Magnet:

Alnico

Cantilever: / Contact pins:

Aluminium / Double-hardened pure Silver

Output Volts:

0.3 mV ± 2dB 1KHz/5 cm/Sec/45°(S/C)***

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 10 Ohm

Weight(S): (S/C)***

approx.11±0.3g

Tracking force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz

stereo dose short

Model: DST201k

Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Wiring:

6N Copper

Magnet:

Alnico

Cantilever:

Aluminium

Output Volts:

0.3 mV ± 2dB 1KHz/5 cm/Sec/45° (S/C)***

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 10 Ohm

Weight(S): (S/C)***

approx. 21±0.3g

Tracking Force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz

stereo dose long

Model: DST201l

Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Wiring:

6N Copper

Magnet:

Alnico

Cantilever:

Aluminium

Output Volts:

0.3 mV ± 2dB 1KHz/5 cm/Sec/45° (S/C)***

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 10 Ohm

Weight(S): (S/C)***

approx. 23±0.3g

Tracking Force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz


TEDESKA "PROGRESSIVE" LINE

STEREO Half Inch System

Model: DST201ub

Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Wiring:

6N Copper

Magnet:

Samarium cobalt

Cantilever: / Contact pins:

Boron / Double-hardened pure Silver

Output Volts:

0.4 mV ± 2dB 1KHz/5 cm/Sec/45° (S/C)***

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 10 Ohm

Weight(S): (S/C)***

approx.  8.7±0.3g

Tracking force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz

Stereo Dose short

Model: DST201kb

Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Wiring:

6N Copper

Magnet:

Samarium cobalt

Cantilever:

Boron Cantilever

Output Volts:

0.4 mV ± 2dB 1KHz/5 cm/Sec/45° (S/C)***

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 10 Ohm

Weight(S): (S/C)***

approx. 20±0.5g

Tracking force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz

stereo dose long

Model: DST201lb

Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Wiring:

6N Copper

Magnet:

Samarium cobalt

Cantilever:

Boron Cantilever

Output Volts:

0.4 mV ± 2dB 1KHz/5 cm/Sec/45° (S/C)***

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 10 Ohm

Weight(S): (S/C)***

approx. 22±0.5g

Tracking force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz


TEDESKA "SOLID CORE" LINE

STEREO HALF INCH SYSTEM

Model: DST201ua

Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Air core coil generator (FAQ-Technics-Q2)

Wiring:

6N Copper

Magnet:

Samarium cobalt

Cantilever: / Contact pins:

Boron / Double-hardened pure Silver

Output Volts:

0.3 mV ± 2dB 1KHz/5 cm/Sec/45°

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 16 Ohm

Weight(S): (S/C)***

approx.12±0.5g

Tracking force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz

STERO DOSE SHORT

Model: DST201ka

Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Air core coil generator (FAQ-Technics-Q2)

Wiring:

6N Copper

Magnet:

Samarium cobalt

Cantilever:

Boron

Output Volts:

0.3 mV ± 2dB 1KHz/5 cm/Sec/45°

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 16 Ohm

Weight(S): (S/C)***

approx. 22±0.5g

Tracking force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz

STEREO DOSE LONG

Model: DST201la

Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Air core coil generator (FAQ-Technics-Q2)

Wiring:

6N Copper

Magnet:

Samarium cobalt

Cantilever:

Boron

Output Volts:

0.3 mV ± 2dB 1KHz/5 cm/Sec/45°

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 16 Ohm

Weight(S): (S/C)***

approx. 24±0.5g

Tracking force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz


TEDESKA "CEDAR" model

STEREO DOSE LONG

Model: DST201lc



Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Wiring:

6N Copper

Magnet:

Alnico sp.

Cantilever:

Aluminium

Output Volts:

0.5 mV ± 2dB 1KHz/5 cm/Sec/45°



Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 16 Ohm

Weight:

approx.  25±0.5g

Tracking force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz


TEDESKA "LACOTE" model

Stereo Half Inch System

Model: DST201uc



Body:

Tonewood, Brass, Bone, Nacre

Type:

Moving Coil

Wiring:

6N Copper

Magnet:

Neodymium

Cantilever: / Contact pins:

Boron / Double-hardened pure Silver

Output Volts:

0.4 mV ± 2dB 1KHz/5 cm/Sec/45° (S/C)***

Frequency Range:

20Hz to 35kHz

Channel Sep.:

a>27db / 1kHz

Impedance:

approx. 10 Ohm



Weight(S): (S/C)***

approx.  7.4±0.3g

Tracking force:

1.8g

Compliance:

12 x 10-6 cm/dyne at 10 hz

Features:

This model is structurally very similar to DST201ub from the progressive line. it distinguishes itself on the latter because of the use of a different kind of magnet and the corresponding dimensional & technical adaptions. It is the most lightweight model in our product portfolio, yet the sound is the most striking. We recommend the customer who is not purposefully searching for such characteristics, to compare with the sound of DST201ub model before making his/her decision to purchase this product.


***( S-standard / C-custom ) TEDESKA custom-made cartridge ( Services.1 )
