GUTS-C & GUTS-S
High precision Headshell Lead wires
The GUTS are developed and validated through constant comparisons with both the half-inch system and the solo plug-and-play system from the same line. Our diameter adjustment options for the crimps on the cartridge side ensure that the wires are connected with utmost precision and reliability.
GUTS-C
Dimension
Total Length: 40 ± 0,5 mm
Crimp Cartridge side: Ø 1,25± 0,05mm
Crimp Tonearm side: Ø 1± 0,05mm
Terminal Isolation: Appr. 8mm length
Ø 3 ± 0,1mm
Material Composition

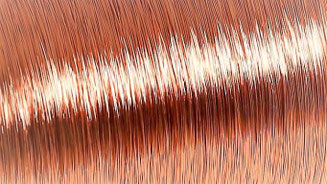

Conductor: silver-plated pure copper
Crimps: silver-plated phosphorbronze
Wire Isolation: Teflon
Terminal Isolations: sp. shrink tubing
Color-code: silicon dioxide
Weight
Total: Appr.1.5g

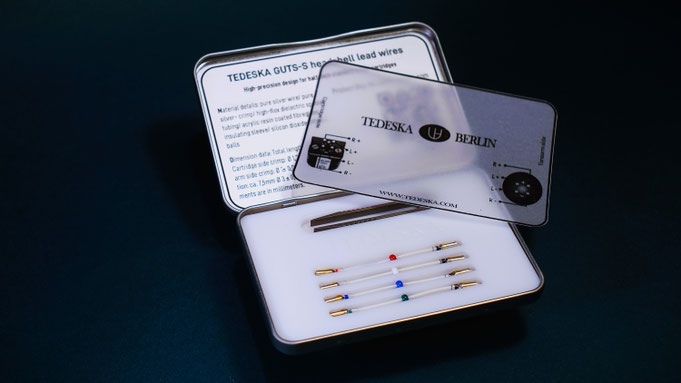

GUTS-S
Dimension
Total Length: 40 ± 0,5 mm
Crimp Cartridge side: Ø 1,25± 0,05mm
Crimp Tonearm side: Ø 1± 0,05mm
Terminal Isolation: Appr. 8mm length
Ø 3 ± 0,1mm
Material Composition
Conductor: pure silver
Crimps: pure silver
Wire Isolation: highflex dielectric sp. tubing
Terminal Isolations: sp. shrink tubing
Color-code: silicon dioxide
Weight
Total: Appr.1g
The example shown below is the GUTS-S set custom made 50mm in length with Ø1.25 & 1.25mm terminal on right.
